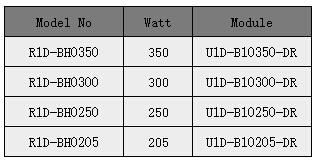

型號(hào)：R1D-BHxxxx
D217.5*W171*H41.5mm
產(chǎn)品規(guī)格
-
Efficiency
>86% at typical load and 48Vdc input
-
Power Good Signal
On delay 100mS to 500mS
-
Rise Time
20mS maximum at 48Vdc full load
-
Output Protection
SCP,OPP,OCP,OVP,OTP
-
Operating
0℃~50℃
-
Storage
-40℃~70℃
- The power supply meet EN60950,EMC,EMI Class A level
- Power Range

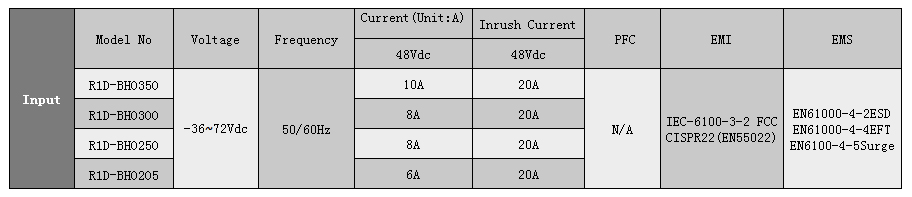

- Input Condition

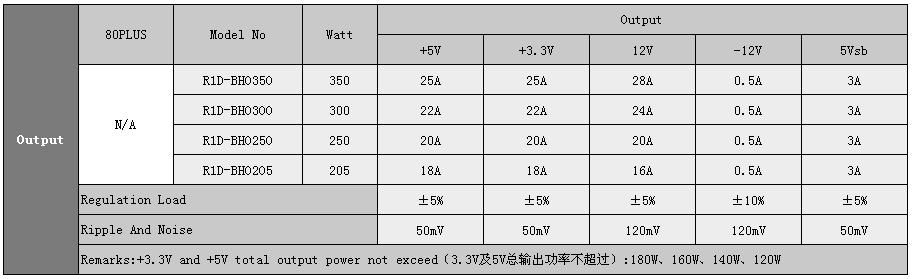

- Output Range
