型號(hào)：U1D-K1xxxx-DRB
D196*W50.5*H40mm
產(chǎn)品規(guī)格
-
Efficiency
>90% at typical load and 48Vdc input
-
Power Good Signal
On Delay 100mS to 500mS
-
Rise Time
20mS maximum at 48Vdc full load
-
Output Protection
SCP,OPP,OCP,OVP,OTP
-
Input Protection
Input Reverse Protection,UVP
-
Operating
0℃~50℃
-
Storage
-40℃~70℃
- The power supply meet EN60950,EMC,EMI Class B level
- EN60950、EMC、EMI Class B
- Power Range

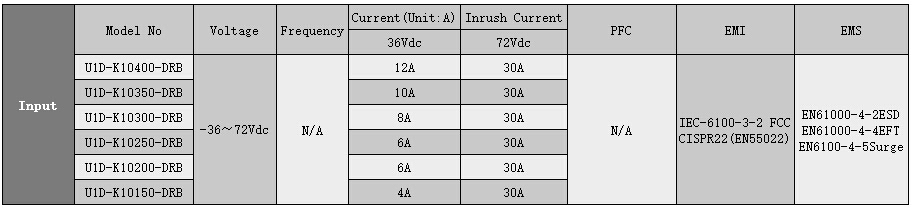

- Input Condition

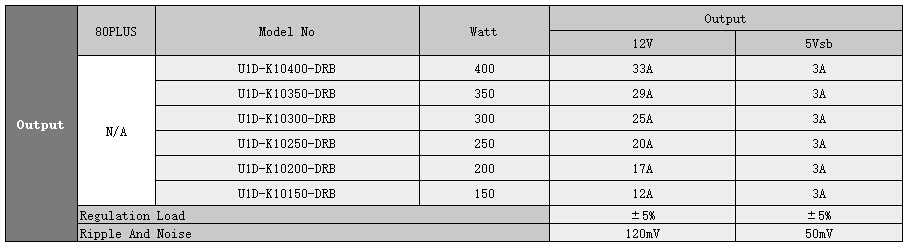

- Output Range
